Luminaire Innov-is XP1


The Luminaire Innov-is XP1 Sewing & Embroidery Machine is adorned with revolutionary StitchVision Technology, which, through an innovative projection of light, helps you find perfection in every stitch. It’s an enlightened sewing, embroidery and quilting experience, powered by technology that’s light years ahead.


Or split into 4x interest-free payments Learn more
SKU: SG5XP1 Category: Tag:


Introducing the Brother Luminaire Innov-is XP1 Sewing & Embroidery Machine, the new star in the sewing world. This revolutionary machine is adorned with StitchVision Technology, utilizing innovative light projection to help you achieve perfection in every stitch. Experience an enlightened sewing, embroidery, and quilting journey powered by cutting-edge technology that’s light years ahead.

With an expansive 165 square centimeters of workspace, you can easily manage projects of any size. Moreover, the generous 33cm needle-to-arm distance is a quilter’s dream, accommodating rolled king-sized quilts effortlessly.

Discover the exclusive My Design Centre, a creative haven that integrates InnovEye Technology with various design techniques. Scan line art, illustrations, and even create stippling and free-motion-like stitching without a PC, software, or stitch regulation. Unleash your creative potential with ease.

The Brother Luminaire XP1 Sewing & Embroidery Machine delivers the ultimate luxury sewing experience. Packed with cutting-edge technology found nowhere else, it sets you free to accomplish your sewing, quilting, and embroidery dreams like never before.

Designed with exclusive, industry-leading features, the Brother Luminaire Innov-is XP1 allows you to create larger projects than ever before. Embrace grand designs with the 408 x 272mm frame, the largest currently offered by Brother. In addition, embrace a new level of precision with the built-in, interactive projector, a unique feature that sets this machine apart.

With the Brother Luminaire Innov-is XP1, you can explore creative perfection effortlessly. Elevate your sewing journey with this advanced, innovative machine that takes sewing, quilting, and embroidery to new heights.
Experience sewing enlightenment with the Brother Luminaire Innov-is XP1 today.

For product support visit


Additional information

Weight 40 kg
Dimensions 65 × 85 × 70 cm


Sewing Features

  • 33cm Long arm (needle to arm)
  • 165 Square centimetres of workspace
  • 26cm High resolution LCD touch screen
  • 670 Decorative stitches, including 10 Disney sewing stitches
  • 5 Fonts and 840 Alphabetical characters
  • Virtual stitch preview and adjustment
  • Laser guide line system
  • Digital dual feed system
  • Camera detecting buttonhole feature
  • One action needle plate exchange system
  • My Custom Stitch
  • 40 Built-in stitch templates
  • Built-in video tutorials
  • Built-in USB ports

Embroidery Features

  • 408 x 272mm embroidery area
  • Up to 1,050 stitches per minute
  • 1,157 Built-in embroidery designs
  • 192 Built-in Disney and Pixar designs
  • Stippling feature
  • 30 Fill patterns
  • Eco quilting
  • LED pointer
  • Stability frame
  • Improved intelligent camera eye system
  • On-screen design editing functions
  • Snowman embroidery position marker
  • Zoom and adjust function
  • Scanning frame technology
  • Droplight LED embroidery marker
  • My Design Centre
  • Line art scan and embroider
  • Scan and Stipple function
  • Colour shuffling function

What's in the box?

Included accessories may differ from the list below depending on the machine model you purchased. For more details on included accessories and their part codes of your machine, refer to the Quick Reference Guide.

The Brother Luminaire Innov-is XP1 Combination Sewing & Embroidery Machine ships with the following:

  • 1/4″ Quilting foot with guide
  • Accessory case
  • Adapter
  • Alternate bobbin case
  • Ball point needle
  • Blind stitch foot
  • Bobbins x10 (one on the machine)
  • Bobbin case (grey)
  • Bobbin clips x10
  • Bobbin cover (with mark)
  • Bobbin cover (on machine)
  • Button fitting foot
  • Buttonhole foot
  • Buttonhole foot stabiliser
  • Cleaning brush
  • Chalk pencil
  • Cord guide bobbin cover
  • Couching dual feed foot
  • Dual feed foot
  • Edge sewing sheets x6
  • Embroidery bobbin thread
  • Embroidery foot with LED Pointer
  • Embroidery frame 408mm x 272mm
  • Embroidery frame 240mm x 240mm
  • Embroidery frame 180mm x 130mm
  • Embroidery frame 100mm x 100mm
  • Embroidery needle plate cover
  • Embroidery positioning sticker sheets x4
  • Eyelet punch
  • Free motion open toe quilting foot
  • Free motion quilting foot
  • Free motion echo quilting foot
  • Grid sheet set
  • Knee lifter
  • LCD cleaning cloth
  • Magnets x6
  • Monogramming foot
  • Multi-purpose screwdriver
  • Needle set
  • Operation manual
  • Overcasting foot
  • Quick set up guide
  • Scanning frame
  • Scissors
  • Screwdriver (small)
  • Screwdriver (large)
  • Seam ripper
  • Sensor pen and holder
  • Small screw
  • Soft carry case
  • Spool caps x4
  • Spool felt
  • Spool net x2
  • Spool stand
  • Stabiliser material
  • Straight stitch foot
  • Straight stitch needle plate
  • Top-left yarn guide
  • Touch pen stylus
  • Twin needle
  • USB cable
  • Vertical stitch alignment foot
  • White calibration stickers
  • Yarn threader
  • Zigzag foot (on machine)
  • Zipper foot

Included accessories subject to change without notice

Technical Information

Hardware Type Quilting Machine, Combination Machine
Display 26cm HD Colour LCD Touch Screen
Lighting LED
Design Placement Camera
Stitch Select Display Touch LCD
Embroidery Area 408mm x 272mm
Embroidery Speed Up to 1050 spm
Frames Included 408mm x 272mm, 240mm x 240mm, 180mm x 130mm, 100mm x 100mm, Scanning Frame
Built-in Embroidery Patterns 1,157
Built-in Fonts 24
Pattern Rotating 1, 10 or 90 degrees
On-screen Editing Yes (Advanced)
Intelligent Eye Camera Yes
Quilting Accessories Incl. ¼ inch Piercing Foot, Free Motion Quilting Foot, Walking Foot
Built-in Stitches 670
Feed Dog 7 Point
Standard Presser Feet No
Max Sewing Speed Up to 1050 spm
Free Arm Sewing Yes
Built-in Sewing Patterns 726
Built-in Sewing Fonts 5 Lettering Styles
Buttonhole Patterns 15
Buttonhole Method Automatic
Stitch Width 40mm Decorative, 7mm Utility
Stitch Length 5mm
Start/Stop Button Yes
Speed Controller Yes
Twin Needle Setting Key Yes
Drop Feed Yes
Foot Controller Yes
Presser Foot Pressure Yes
Bobbin Type Horizontal
Quick Set Bobbin Yes
Needle Position Key Yes
Side Feeding Yes
Dual Feed Advanced
Thread Tension Control Automatic
Thread Cutter Automatic
Needle Threader Automatic
Thread Sensor Upper and Bobbin
Knee Lifter Yes
Carry Case Soft Cover Included
My Custom Stitch Yes
Control Panel 2 Hosts and 1 Slave
Digital Media Card Reader, USB

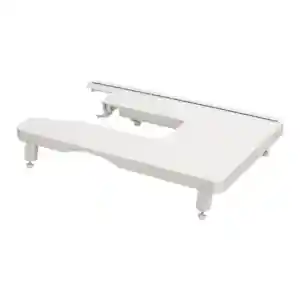

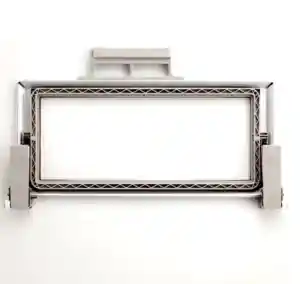

Optional Extras Border Frame, Circular Attachment, Free Motion Grip, Multi-function Foot Controller, Ruffler Foot, Wide Table
